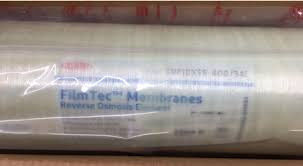

DOW FilmTec™ Reverse Osmosis Membranes BW30 PRO-400: High Rejection and High Performance for Brackish Water Treatment
Detalhes do produto:
| Place of Origin: | China |
| Marca: | DOW |
| Certificação: | CE |
| Model Number: | FilmTec™ BW30 PRO-400 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Preço: | negociável |
| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Units per Month |
|
Informação detalhada |
|||
| Cleaning Ph Range: | 2–12 (≤ 30 min) | Element Series: | LP Series |
|---|---|---|---|
| Product Material: | Fiberglass and epoxy | Membrane Thickness: | 0.1-0.2 mm |
| Capacity: | 250LPH | Cleaning Frequency: | Every 3-6 months |
| Product Productivity: | 250L/Hour | Advantage Of Product: | Extreme Low Working Pressure |
| Processing: | RO Process | Cycle Test: | 100000 times |
| Temperature Of Membrane: | 25℃ | Advantages Of Membrane: | low working pressure |
| Temperature Of Model: | 25℃ | Temperature Range: | 40-113 degrees Fahrenheit |
| Components: | membrane | ||
Descrição de produto
DOW FilmTec™ Reverse Osmosis Membranes BW30 PRO-400: High Rejection and High Performance for Brackish Water Treatment
Key Features
The FilmTec™ BW30 PRO-400 Reverse Osmosis Membranes are engineered for superior performance in brackish water treatment. With a focus on high rejection, higher flow rates, and long-term stability, this industry-standard membrane offers significant improvements over previous generation BW30 products.
-
Consistent Water Quality: Delivers higher rejection and flow compared to previous BW30 membranes.
-
Proven Performance: Built on the long-standing reliability of the BW30 industry-standard RO membrane.
-
Durability: Known for its excellent durability, ensuring stable, long-term performance in harsh water conditions.
Key Applications
The BW30 PRO-400 Reverse Osmosis Membranes are ideal for a wide range of industrial and municipal applications:
-
Demineralization: Suitable for industries such as Power Generation, Steel & Metal, Chemical & Petrochemical.
-
Municipal Water Purification: Ensures high-quality water for public and private water systems.
Typical Properties
| Product | Active Area (ft² / m²) | Feed Spacer Thickness (mil) | Permeate Flow Rate (gpd / m³/d) | Stabilized Salt Rejection (%) |
|---|---|---|---|---|
| FilmTec™ BW30 PRO-400 | 400 (37) | 28 | 11,000 (42) | 99.6 |
-
Test Conditions: 2,000 ppm NaCl, 225 psi (15.5 bar), 77°F (25°C), pH 8, and 15% recovery. Individual flow rates may vary by ±15%.
-
Note: Sales specifications may change with design revisions.
Suggested Operating Conditions
The BW30 PRO-400 Reverse Osmosis Membranes are designed for reliable performance in challenging conditions:
| Property | Limit |
|---|---|
| Membrane Type | Polyamide Thin-Film Composite |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Pressure | 600 psi (41 bar) |
| Maximum Pressure Drop | Per Element: 15 psi (1.0 bar) |
| Per Pressure Vessel: 50 psi (3.5 bar) | |
| pH Range (Continuous Operation) | 2 - 11 |
| pH Range (Short-Term Cleaning) | 1 - 13 |
| Maximum Feed Flow | 75 gpm (17 m³/h) |
| Maximum Feed Silt Density Index (SDI) | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
-
Note: The maximum temperature for continuous operation above pH 10 is 95°F (35°C).
-
Important: Oxidation damage is not covered under warranty. DuPont recommends dechlorinating feedwater before membrane exposure.
Important General Information
To ensure the optimal performance and longevity of the BW30 PRO-400 Reverse Osmosis Membranes, follow these guidelines:
-
Moisture Maintenance: Keep elements moist after initial wetting.
-
System Operation: Follow the FilmTec™ Reverse Osmosis / Nanofiltration Elements Operation Excellence guidelines for successful RO system operation.
-
Biological Growth Prevention: During prolonged shutdowns, immerse membranes in a preservative solution.
-
Handling and Compatibility: The customer is fully responsible for the effects of incompatible chemicals and lubricants on the membranes.
System Operation and Start-Up Sequence
-
Avoid static permeate-side backpressure during operation.
-
Permeate from the first hour should be discarded.
-
Effective cyst and pathogen removal depend on system design and maintenance practices.
Refer to the FilmTec™ Reverse Osmosis Membranes Technical Manual for detailed system operation, plant start-up sequence, and troubleshooting.
Regulatory Note
This product may be subject to drinking water application restrictions in certain countries. Please verify application status before use and sale.
