Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Detalhes do produto:
| Place of Origin: | China |
| Marca: | China brand |
| Certificação: | CE/UL/NSF |
| Model Number: | Various models available |
| Documento: | FRP-tanks-print.pdf |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 set |
|---|---|
| Preço: | negociável |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
Informação detalhada |
|||
| Nominal Size(inch): | Various size available | Body Dimensions ⌀×H: | Multiple options |
|---|---|---|---|
| Opening Size(inch): | Multiple options | Design Flow Rate(T/H): | Multiple options |
| The Original of the tank: | China | Key Benefits: | Easy Maintenance And Upkeep,Corrosion resistant and no leak |
| Product Main Material: | FRP or reinforced PP | Usage: | Industry, Agriculture, Chemical，Water Softener，Industrial Water Treatment |
Descrição de produto

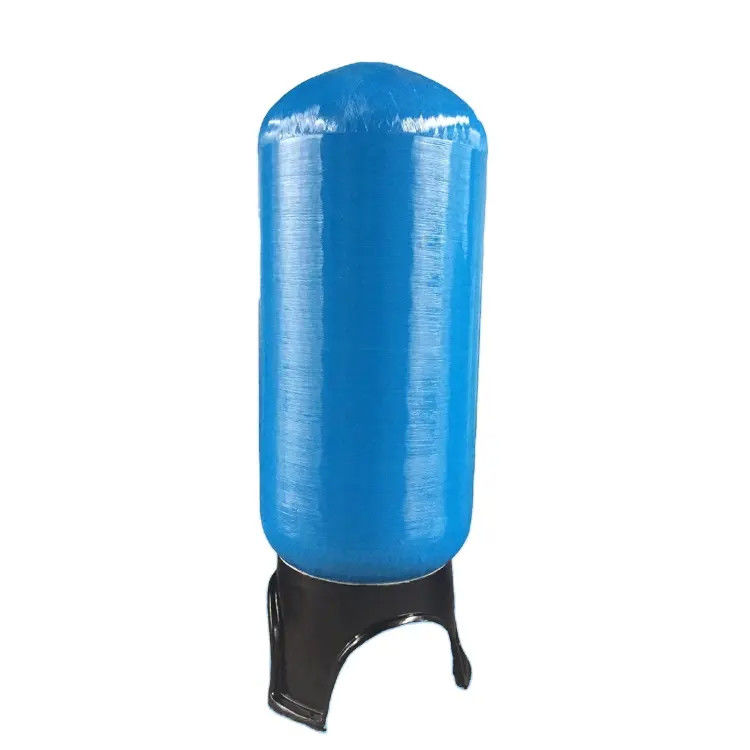

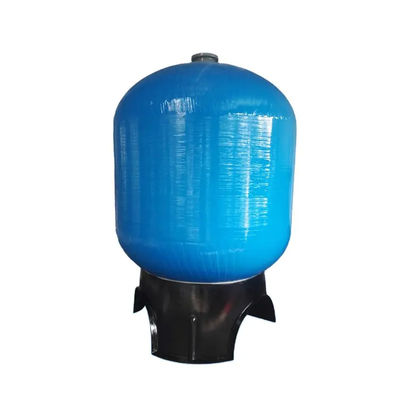

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Water treatment tanks are core components in purification systems, engineered for processes including filtration, softening, desalination, and wastewater treatment. Utilizing physical/chemical separation technologies, they efficiently remove contaminants (e.g., sediments, heavy metals, pathogens) to produce water ranging from industrial ultrapure grades to potable drinking water.
Key Applications
| Sector | Functions |
|---|---|
| Industry | Boiler feed water, cooling tower treatment, electroplating effluent purification |
| Energy/Tech | Semiconductor UPW, PV cell rinsing, nuclear plant coolant systems |
| F&B | Brewing water softening, bottling line sterilization, FDA/NSF-compliant process water |
| Pharma | Pharmaceutical PW/WFI, bioreactor media preparation |
| Municipal | Household purification, commercial drinking stations, greywater recycling |
| Agriculture | Irrigation desalination, aquaculture water treatment, hydroponic solutions |
Technical Adaptability
-
Material Options:
-
Industrial: FRP tank + PE liner (chemical resistance), 316L stainless steel (hygienic)
-
Residential: Food-grade PP, reinforced engineering plastics
-
-
Functional Extensions:
-

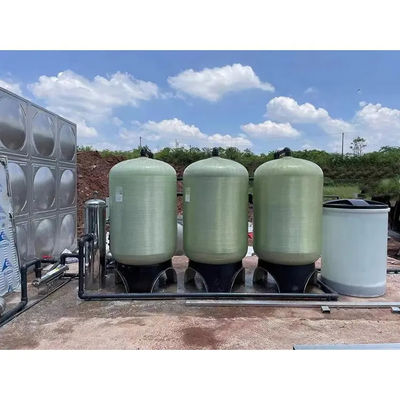

Integrated pressure ports, automatic backwash, multi-tank parallel systems
-
Compatible with activated carbon/ion exchange/RO/UV modules
-
-
Customization:
-
Capacity: 50L~50m³ | Pressure: 0.6~2.5MPa | Vertical/horizontal configurations
-
These tanks deliver corrosion resistance, extended service life, and minimal maintenance, serving as critical infrastructure for sustainable water reuse across industries.
|
尺寸(英寸) |
直径&高度(mm) |
开口(英寸) |
设计流量(T/ H ) |
|
0818 |
φ200×450 |
顶部开口2.5英寸螺纹 |
0.1～0.2 |
|
0835 |
φ200×890 |
顶部开口2.5英寸螺纹 |
0.2～0.4 |
|
0844 |
φ200×1100 |
顶部开口2.5英寸螺纹 |
0.2～0.5 |
|
1035 |
φ250×890 |
顶部开口2.5英寸螺纹 |
0.5～1.0 |
|
1054 |
φ250×1400 |
顶部开口2.5英寸螺纹 |
0.5～1.5 |
|
1254 |
φ300×1400 |
顶部开口2.5英寸螺纹 |
1.6～2.2 |
|
1265 |
φ300 ×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1354 |
φ325 ×1400 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1365 |
φ325×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1454 |
φ350×1400 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1465 |
φ350×1650 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1654 |
φ400×1400 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
1665 |
φ400×1650 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
2069 |
φ500×1750 |
顶部开口4英寸螺纹 |
4.5～6.0 |
|
2069 |
φ500×1750 |
顶部和底部开口 4” 螺纹 |
4.5～6.0 |
|
2474 |
φ600 ×1900 |
顶部开口4英寸螺纹 |
6.2～8.2 |
|
2474 |
φ600×1900 |
顶部和底部开口4英寸螺纹 |
6.2～8.2 |
|
3074 |
φ750×1900 |
顶部开口4英寸螺纹 |
7.2～12.2 |
|
3074 |
φ750×1900 |
顶部和底部开口4英寸螺纹 |
7.2～12.2 |
|
3674 |
φ900×1900 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3674 |
φ900×1900 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3696 |
φ900×2400 |
顶部和底部开口6英寸法兰 |
13.2～16.2 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4087 |
φ1000×2200 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4096 |
φ1000×2400 |
顶部和底部开口6英寸法兰 |
18.0～25.0 |
|
4887 |
φ1200×2200 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
4896 |
φ1200×2400 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
6096 |
φ1500×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
6396 |
φ1600×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
7296 |
φ1800×2400 |
顶部和底部开口6英寸法兰 |
55.0～80.0 |
|
8096 |
φ2000×2400 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
|
80102 |
φ2000×2600 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
