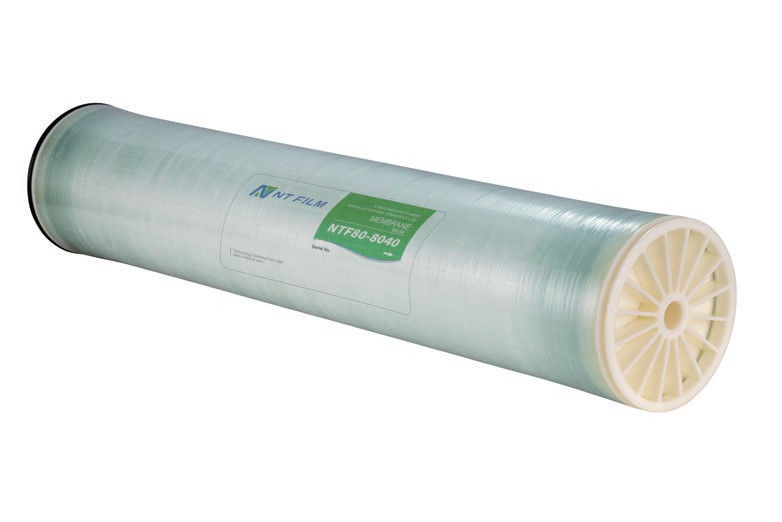

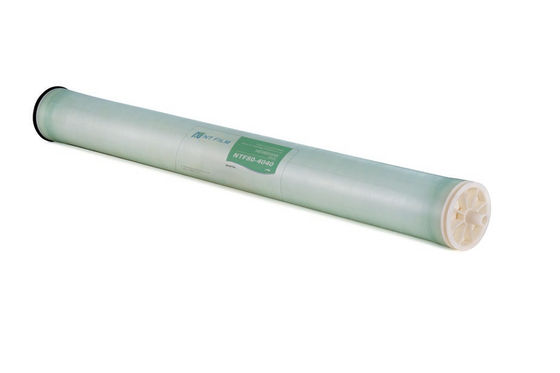

Nanofiltration Membranes Combine High Water Flux, High Desalination Rate
Detalhes do produto:
| Place of Origin: | China |
| Marca: | T-TECH |
| Certificação: | CE |
| Model Number: | Various models available |
| Documento: | _RO-membranes.pdf |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 pc（This product can be produced with your brand on bulk order） |
|---|---|
| Preço: | negociável |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
Informação detalhada |
|||
| Type: | Nanofiltration Membranes | model: | Various models available |
|---|---|---|---|
| The Brand: | China brand | Membrane Permeate Flow Rate GPD(m3/d): | 7500(28.4) 6500(24.6) 8000(30.3) 2000(7.6) 1600(6.1) |
| Active Membrane Area ft2(m2): | 85(7.9) | Feed Spacer (mil): | 34,31 |
| Membrane advantages: | High Water Flux, High Desalination Rate | Main Function: | Remove Salt TDS |
Descrição de produto
Nanofiltration Membranes Combine High Water Flux, High Desalination Rate
Utilizing advanced preparation techniques and fully automated production lines, the reliability and stability of nanofiltration product performance are ensured. The nanofiltration membrane combines high water flux, high desalination rate and high durability with low operating pressure, significantly saving system investment and operational costs. It features selective separation, capable of removing almost all bacteria, viruses, microorganisms, and organic matter from water, with high removal rates for pesticides, antibiotics, and heavy metals, while retaining beneficial minerals such as sodium, potassium, calcium, magnesium, and silicic acid. Its main applications include advanced treatment of municipal tap
water sourced from surface or groundwater, zero discharge of wastewater, decolorization of landfill leachate, lithium extraction from salt lakes, purification, separation, and concentration of high-concentration saline water, material separation, and the chlor-alkali industry.
Product Paramenters
| Product | Permeate Flow Rate GPD(m3/d) |
Stabilized Salt Rejection (%) |
Minimum Salt Rejection (%) | Active Membrane Feed Spacer Areaft²(m²) (mil) |
|||
| High Rejection¹ | BW-365-34 | 10500(39.7) | 99.6 | 99.4 | 365(34) | 34 | |
| BW 400 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 28 | ||
| BW 440 | 12650(47.9) | 99.6 | 99.4 | 440(41) | 28 | ||
| BW 400-34 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34 | ||
| Anti-fouling¹ | BW-FR 365-34 | 10500(39.7) | 99.6 | 99.4 | 365(34) | 34 | |
| BW-FR 400-34 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34 | ||
| BW-FR 400-LD | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34-LD | ||
BW-XFR 400-34 |
11500(43.5) | 99.7 |
99.45 |
400(37) | 34 |
||
BW-XFR 400-LD |
11500(43.5) | 99.7 |
99.5 |
400(37) | 34-LD |
||
| Product | Permeate Flow Rate GPD(m3/d) |
Stabilized Salt Rejection (%) |
Minimum Salt Rejection (%) | Active Membrane Area ft²(m²) |
Feed Spacer (mil) |
|||
| Low energy² | LE 400 | 11000(41.6) | 99.5 | 99.2 | 400(37) | 28 | ||
| LE 440 | 12500(47.3) | 99.5 | 99.2 | 440(41) | 28 | |||
| Anti-fouling, Low energy² |
LE-FR 400-34 | 11000(41.6) | 99.5 | 99.2 | 400(37) | 34 | ||
| LE-FR 400-LD | 11000(41.6) | 99.5 | 99.2 | 400(37) | 34-LD | |||
| eXtra low pressure³ | XLP400-34 | 13200(50.0) | 99.2 | 98.7 | 400(37) | 34 | ||
| XLP400-LD | 13200(50.0) | 99.2 | 98.7 | 400(37) | 34-LD | |||
| XLP440 | 14500(54.9) | 99.2 | 98.5 | 440(41) | 28 | |||
| Test condition 2:2000ppm NaCl,test pressure 150psi(10.3bar),77F(25℃),pH 7,15%recovery. Test condition 3:500ppm NaCI,test pressure 100psi(6.9bar),77F(25℃),pH 7,15%recovery. |
||||||||
