IONPURE IP-LXM8000Z-5 CEDI Module 7.5-10m3/hr Mega Flow Capacity
Detalhes do produto:
| Place of Origin: | China |
| Marca: | IONPURE |
| Certificação: | CE |
| Model Number: | IP-LXM45Z-5 |
| Documento: | fgwater-ionpure-lxz-ds.pdf |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Preço: | negociável |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Informação detalhada |
|||
| IP-LXM8000Z-5 Minimum Flow Rate m3/hr (gpm) of the module: | 2.57 (11.3) | IP-LXM8000Z-5 Design Flow Rate m3/hr (gpm) of the module: | 5.1-7.67 (22.5-33.8) |
|---|---|---|---|
| IP-LXM8000Z-5 Shipping Weight kg (lbs): | 205 (451) | IP-LXM8000Z-5 Operating Weight kg (lbs): | 157 (345) |
| IP-LXM8000Z-5 Recovery: | 90–95% | Advantages: | Mega Flow Capacity |
| Silica (SiO2) Removal: | 90–99%, depending on feed conditions | pH: | 4-11 |
| Destacar: | IONPURE CEDI module high flow capacity,EDI module 7.5-10m3/hr Mega Flow,IONPURE IP-LXM8000Z-5 CEDI module |
||
Descrição de produto
| Attribute | Value |
|---|---|
| Minimum Flow Rate (m³/hr/gpm) | 2.57 (11.3) |
| Design Flow Rate (m³/hr/gpm) | 5.1-7.67 (22.5-33.8) |
| Shipping Weight (kg/lbs) | 205 (451) |
| Operating Weight (kg/lbs) | 157 (345) |
| Recovery | 90–95% |
| Silica (SiO₂) Removal | 90–99%, depending on feed conditions |
| pH Range | 4-11 |

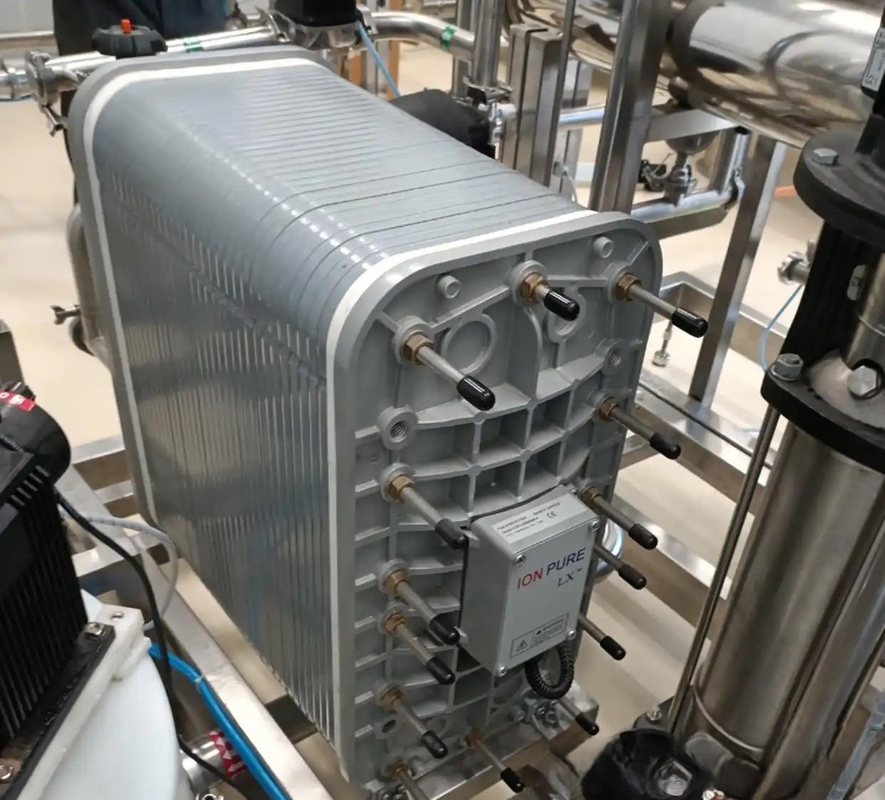

The IONPURE® LX8000Z IP-LXM8000Z-5 represents a paradigm shift in industrial-scale continuous electro-deionization (CEDI) technology, engineered to deliver unprecedented flow rates without chemical regeneration.
- MegaFlow Capacity: Single-stack design delivers 7.5-10 m³/h (33-44 gpm), enabling centralized systems to replace dozens of smaller units.
- Zero Liquid Discharge (ZLD) Compatibility: Operates at 90-95% recovery rates, minimizing wastewater discharge.
- Adaptive Power Control: Dynamically adjusts DC voltage (0-400V) and current (1-6A) to match feedwater conductivity fluctuations.
- Pressure Resilience: Withstands operational pressures up to 7 bar (100 psi) and temperatures up to 45°C.
- Ultra-Pure Water Guarantee: Produces water with resistivity >17 MΩ*cm and removes >99% of ions (Na⁺, Cl⁻) and 90-99% silica.
CE mark certification, each module is strictly tested before leaving the factory to meet high industry standards. Manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.
The module should be installed indoors, away from direct sunlight, with ambient temperature not exceeding 45°C (113°F) to ensure stable and efficient operation.
| Parameter | Value |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400V |
| DC Amperage | 1.0-6.0A |
| Product Resistivity | Minimum Flow >17 MW-cm*† Maximum Flow >7 MW-cm*† |
| Silica (SiO₂) Removal | 90-99%, depending on feed conditions |
| Parameter | Specification |
|---|---|
| Feed Water Conductivity | <40 μS/cm |
| Temperature | 5-45°C (41-113°F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Total Chlorine (as Cl₂) | <0.05 ppm |
| pH Range | 4-11 |

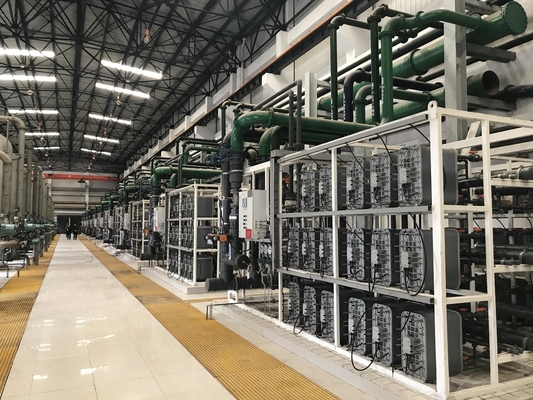

E-Cell EDI technology has been successfully applied in various industries including power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please visit: www.fgwater.com/Industries/
FG Water Technologies (www.fgwater.com) is a high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment. Our products include seawater reverse osmosis systems, ultrafiltration systems, EDI equipment, and more, serving industries worldwide.
