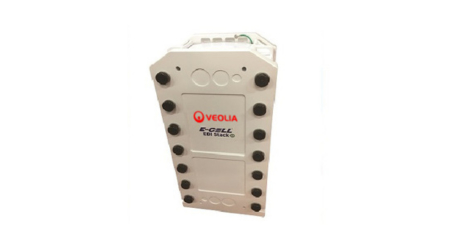

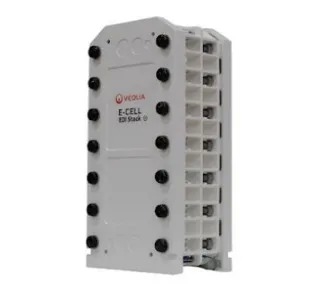

Veolia MK-3MiniHT EDI Stack for Pharmaceutical Water USP EP Compliance
Detalhes do produto:
| Place of Origin: | China |
| Marca: | VEOLIA |
| Certificação: | CE |
| Model Number: | Veolia EDI MK-3MiniHT |
| Documento: | FSpwE-CellMK-3MiniHT_EN.pdf |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Preço: | negociável |
| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Units per Month |
|
Informação detalhada |
|||
| MK-3MiniHT Flow Rate Range: | 0.5–1.6 m3 /h (2.2–7.0 gpm) | MK-3MiniHT Product Shipping Weight: | 57 kg (126 lbs) |
|---|---|---|---|
| MK-3MiniHT Dimensions of this model (width x height x depth): | 30 cm x 61 cm x 29 cm | MK-3MiniHT Resistivity: | ≥ 10 (Pharmaceutical) or ≥ 16 MOhm-cm (Industrial |
| Product Sodium: | ≤ 3 ppb (industrial) | Product Maximum Sanitization Temperature: | 85ºC (185ºF) |
| Product Maximum Sanitization Inlet Pressure: | 2.1 bar (30 psi) | Product Application: | Pharmaceutical and laboratory purified water compliant with USP and EP |
| Destacar: | Veolia MK-3MiniHT EDI stack,EDI stack for pharmaceutical water,USP EP compliant EDI stack |
||
Descrição de produto
Compliant with USP and EP standards for pharmaceutical and laboratory purified water applications.
| Flow Rate Range | 0.5–1.6 m³/h (2.2–7.0 gpm) |
| Shipping Weight | 57 kg (126 lbs) |
| Dimensions | 30 cm x 61 cm x 29 cm |
| Resistivity | ≥ 10 MOhm-cm (Pharmaceutical) or ≥ 16 MOhm-cm (Industrial) |
| Maximum Sanitization Temperature | 85ºC (185ºF) |
- Patented HT-EDI™ technology for reagent-grade water production
- 90% lower energy consumption compared to mixed-bed systems
- Maintenance-free operation with intelligent control system
- Real-time monitoring of conductivity, pH, and pressure drop
- Patented staggered flow channel design prevents scaling
Maintains resistivity above 18.2 MΩ*cm with 22% energy reduction compared to traditional EDI equipment. Achieves recovery rates exceeding 90% even with high-hardness raw water.
- Basic Unit - Standalone purification
- RO-EDI Integrated - Complete purification skid
- GMP Version - With full validation support
- CE, RoHS, CSA and EAC marked
- FDA-compliant materials
- UKCA certified
- Manufactured in ISO 9001 and ISO 14001 facility
- Halal certified by IFANCA®
| Parameter | Value |
|---|---|
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 1.4-2.8 bar (20-40 psi) |
| Recovery Rate | Up to 93% |
| Conductivity | <117 µS/cm |
| pH Range | 4-11 |
Ideal for water for injection, pharmaceutical purified water, and laboratory purified water systems. Complies with USP, EP, and other pharmacopeia standards.
For more information about our EDI technology and application cases, visit FG Water Technologies.
FG Water Technologies is a high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment. Our products serve various industries including pharmaceutical, food and beverage, chemical, and power.
