Ionpure LX-Z IP-LXM24Z-5 CEDI Module: Industrial High-Purity Water Production Without Chemicals
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | IONPURE |
| Certificação: | CE |
| Número do modelo: | IP-LXM24Z-5 |
| Documento: | fgwater-ionpure-lxz-ds.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 pc |
|---|---|
| Preço: | negociável |
| Detalhes da embalagem: | Embalagem de exportação padrão |
| Tempo de entrega: | 5-8 dias de trabalho |
| Habilidade da fonte: | 60000 unidades por mês |
|
Informação detalhada |
|||
| 24z-5 taxa de fluxo mínima m3/h (gpm): | 1.36 (6.0) | 24Z-5 Taxa de fluxo de projeto M3/HR (GPM): | 2.8-4.2 (12.5-18.8) |
|---|---|---|---|
| 24z-5 peso de envio kg (lbs) **: | 115 (254) | 24z-5 operando peso kg (libras): | 92 (103) |
| Recuperação de 24Z-5: | 90-95% | Vantagens da pilha: | Ampla gama de fluxo, baixos custos operacionais ， sem produtos químicos |
| Aplicação em pilha: | Produção industrial de água de alta pureza | FACK TAXA DE FLUXO MILULO M3/HR (GPM): | 1.36 (6.0) |
| Fluxo de design da pilha M3/HR (GPM): | 2.8-4.2 (12.5-18.8) | PACK INSCRIMENTO PESO KG (LBS) **: | 115 (254) |
| Pilha de peso operacional kg (lbs): | 92 (103) | Recuperação da pilha: | 90-95% |
| Tensão CC: | 0–400 | DC AMPERAGEM: | 1.0–6.0 |
| Vantagem: | Boa qualidade da água | ||
| Destacar: | industrial CEDI water module,chemical-free EDI module,high-purity water production module |
||
Descrição de produto
Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

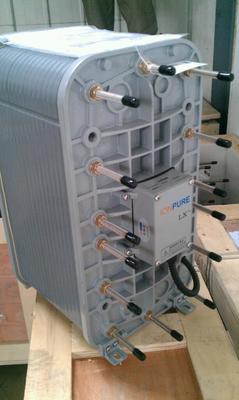

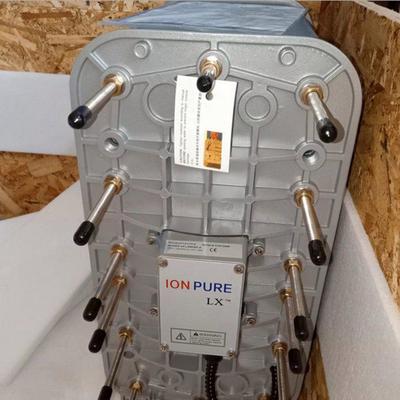

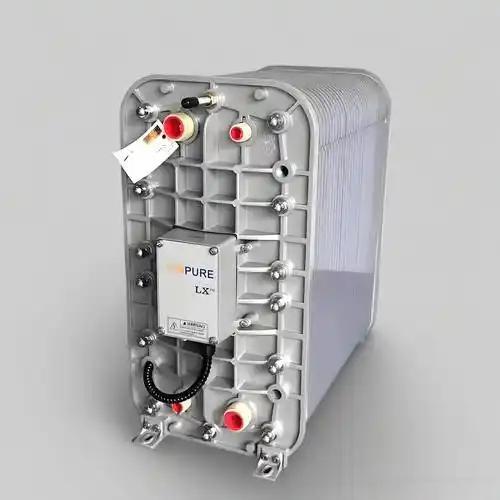

The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.
Product Overview
The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.
Key Features
- Excellent electrical insulation performance
- Double O-ring seal ensures leak-free operation
- Significantly lower operating costs than traditional ion exchange
- No acid, alkali, or neutralization system required
- Continuous operation at 7bar (100psi), 45°C (113°F)
- Patented "full-filled" concentrate chamber design
- Produces water quality equal to or better than mixed bed systems
- Continuous water production with stable quality
Technical Specifications
| Attribute | Value |
|---|---|
| Minimum Flow Rate (m³/hr/gpm) | 1.36 (6.0) |
| Design Flow Rate (m³/hr/gpm) | 2.8-4.2 (12.5-18.8) |
| Shipping Weight (kg/lbs) | 115 (254) |
| Operating Weight (kg/lbs) | 92 (103) |
| Recovery Rate | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
Module Components
The EDI membrane block removes ions through built-in ion exchange resin, consisting of:
- Pure water chamber - Mixed resin layer between anion and cation exchange membranes
- Concentrated water chamber - Working interlayer between pure water chambers
- Electrode plates - Generate electric field during operation
Applications
- Solar photovoltaic industry
- Electronics manufacturing
- Biopharmaceutical production
- Chemical processing
- Conventional industrial applications
- Power industry
Quality Assurance
CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.
Operating Environment
Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.
Performance Data
Recovery: 90-95%
DC Voltage: 0-400
DC Amperage: 1.0-6.0
Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†
Silica (SiO2) Removal: 90-99%
Feed Water Specifications
| Parameter | Specification |
|---|---|
| Conductivity | < 40 μS/cm |
| Temperature | 5-45°C (41-113°F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Total Chlorine | < 0.05 ppm |
| pH | 4-11 |
