Ionpure LX-Z IP-LXM30Z-5 CEDI Module Chemical-Free High-Purity Water for Industry
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | IONPURE |
| Certificação: | CE |
| Número do modelo: | IP-LXM30Z-5 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 pc |
|---|---|
| Preço: | negociável |
| Detalhes da embalagem: | Embalagem de exportação padrão |
| Tempo de entrega: | 5-8 dias de trabalho |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 60000 unidades por mês |
|
Informação detalhada |
|||
| Taxa de fluxo mínima 30Z-5 M3/h (GPM): | 1.70 (7,5) | Taxa de fluxo de projeto 30Z-5 M3/HR (GPM): | 3.3-5.11 (15.0-22.5) |
|---|---|---|---|
| 30Z-5 Peso de envio kg (lbs) **: | 132 (291) | 30z-5 peso operacional kg (lbs): | 110 (243) |
| 30Z-5 Recuperação: | 90-95% | Vantagens 30Z-5: | água de alta pureza |
| Temperatura da pilha: | 5–45 ° C (41-113˚F) | Pilha pressão de entrada: | 1,4–6,9 bar (20–100 psig) |
| Aplicativo: | Uso industrial | Destaque: | Módulo EDI sem produtos químicos, módulo de cedi de água de alta pureza, módulo Industrial Ionpure L |
Descrição de produto

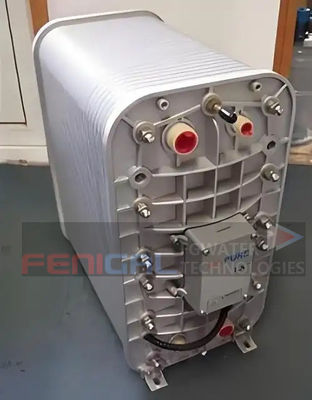

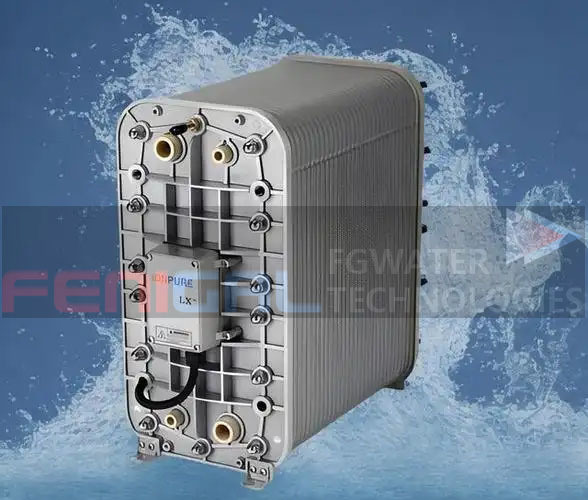

The Ionpure LX-Z IP-LXM30Z-5 CEDI Module is a premium industrial Continuous Electrodeionization (CEDI) system that produces high-purity water (up to 18 MΩ·cm) without chemicals. Leveraging Siemens’ patented tech, it replaces traditional ion exchange systems, eliminating chemical regeneration and hazardous handling. CE-certified and made in China, it ensures stable performance for critical sectors like pharmaceuticals, microelectronics, and power generation, with minimal wastewater (90–95% recovery) and lower operational costs.
Key Applications
Ideal for industrial high-purity water needs:
• Pharmaceutical production (USP-purified water)
• Microelectronics/ semiconductor ultrapure water
• Power generation (boiler feed water)
• LNG, coal chemical, and solar energy processes
• Food, biotech, and steel industry water treatment
Specification Parameters
|
Parameter |
Value |
|
Design Flow Rate |
3.3–5.11 m³/hr (15.0–22.5 gpm) |
|
Minimum Flow Rate |
1.70 m³/hr (7.5 gpm) |
|
Recovery Rate |
90–95% |
|
Operating Temperature |
5–45°C (41–113°F) |
|
Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
|
Product Resistivity |
>16 MΩ·cm (min flow >17 MΩ·cm) |
|
Shipping Weight |
132 kg (291 lbs) |
|
Operating Weight |
110 kg (243 lbs) |
|
Silica Removal |
90–99% (feed-dependent) |
Core Advantages
1. Chemical-Free Operation: Uses electricity to regenerate resins, no acids/alkalis.
2. Durability: Corrosion-resistant materials, leak-proof seals, 7-bar pressure tolerance.
3. Efficiency: Adaptive DC power, 90–95% recovery, reduces energy/footprint.
4. Scalability: Modular design integrates into new/existing systems.
FAQ
Q1: What’s the minimum order quantity?
A1: 1 pc, supporting small-batch trials.
Q2: How long is delivery?
A2: 5–8 working days with standard export packing.
Q3: Can it handle high silica feed water?
A3: Yes, removes 90–99% silica (feed <1.0 ppm).
After-Sales
Each Ionpure LX-Z IP-LXM30Z-5 CEDI Module undergoes pre-shipment testing (ISO 9001/14000). Technical support includes installation guidance and maintenance tips. Payment via T/T; monthly supply capacity hits 60,000 units for stable orders.
