Dupont™AmberLite™ IRN160 H/OH For Water Treatment In The Nuclear Power Industry
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Dupont |
| Certificação: | ISO9001 |
| Número do modelo: | DuPont ™ Amberlite ™ IRN160 H/OH |
| Documento: | IER-AmberLite-IRN160-H-OH-P...en.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1pc |
|---|---|
| Preço: | negociável |
| Detalhes da embalagem: | Embalagem de exportação padrão |
| Tempo de entrega: | 5-8 dias de trabalho |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 60000 unidades por mês |
|
Informação detalhada |
|||
| Copolímero de resina de cátio: | Estireno-divinilbenzeno | IRN97 H Cation Resin Matrix: | Gel |
|---|---|---|---|
| IRN97 H FORMULAÇÃO DE RESINA DE CAÇÃO: | Contas esféricas translúcidas âmbar | Aplicações primárias: | Tratamento de água na indústria de energia nuclear |
| IRN97 H Cation Resina Partícula Diâmetro: | 525 ± 50 μm | Peso de envio do produto: | 700 g/L (para cama mista âmbarlite ™ IRN160 H/OH) |
Descrição de produto

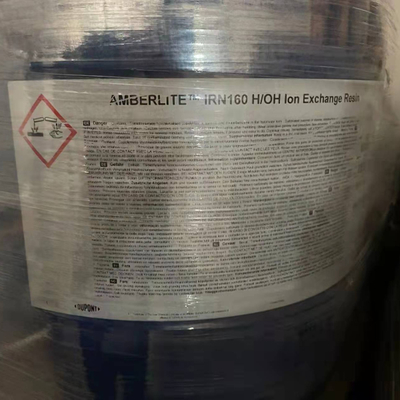

DuPont™ AmberLite™ IRN160 H/OH
1. Product Overview
AmberLite™ IRN160 H/OH is a nuclear-grade, uniform particle size mixed bed ion exchange resin specifically designed for water treatment applications in the nuclear power industry. It is a stoichiometric 1:1 equivalent mixture of AmberLite™ IRN97 H (cation) and AmberLite™ IRN78 OH (anion) resins, optimized to minimize separation during installation and transfer due to the smaller cation resin particle size. This resin ensures highest purity and stability, reducing ionic and non-ionic contamination, enabling reliable and safe production while minimizing equipment maintenance and unscheduled outages.
Key Features:
-
Minimal separation during installation/transfer
-
Faster kinetics and higher exchange capacity
-
Excellent chemical stability and resistance to bead fracture
-
Reduced radioactive waste generation
Key Applications:
-
Primary water treatment: Primary coolant blowdown, pre-outage cleanup
-
Fuel pool purification
-
Rad waste treatment and decontamination: Removal of radioactive cations (e.g., , cobalt isotopes), anionic radioactive material, and silver
-
PWR steam generation blowdown (APG)
-
BWR condensate polishing
Historical Reference:
Previously sold as AmberLite™ IRN160 Ion Exchange Resin.
2. Typical Properties
Physical and Chemical Properties:
| Property | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Copolymer | Styrene-divinylbenzene | Styrene-divinylbenzene |
| Matrix | Gel | Gel |
| Type | Strong acid cation | Strong base anion |
| Functional Group | Sulfonic acid | Trimethylammonium |

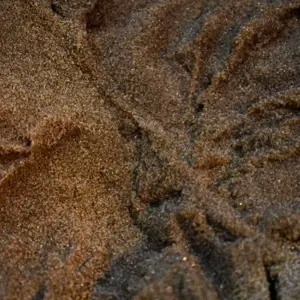

| Physical Form | Amber translucent spherical beads | Amber translucent spherical beads |
| Ionic Form as Shipped | H⁺ | OH⁻ |
| Total Exchange Capacity | ≥ 2.10 eq/L (H⁺ form) | ≥ 1.20 eq/L (OH⁻ form) |
| Water Retention Capacity | 45.0 – 51.0% (H⁺ form) | 54.0 – 60.0% (OH⁻ form) |
| Ionic Conversion (H⁺) | ≥ 99% | — |
| Ionic Conversion (OH⁻) | — | ≥ 95% |
| Ionic Conversion (CO₃²⁻) | — | ≤ 5% |
| Ionic Conversion (Cl⁻) | — | ≤ 0.05% |
| Ionic Conversion (SO₄²⁻) | — | ≤ 0.1% |
Particle Size Distribution:
| Parameter | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Particle Diameter | 525 ± 50 μm | 630 ± 50 μm |
| Uniformity Coefficient | ≤ 1.20 | ≤ 1.10 |
| < 300 μm | ≤ 0.2% | ≤ 0.2% |
| < 425 μm | — | ≤ 0.5% |
| > 850 μm | ≤ 5.0% | — |
| > 1180 μm | — | ≤ 2.0% |
ℹ For additional particle size information, refer to Document No.: 45-D00954-en.
Purity (Metals, Dry Basis):
| Element | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Na | ≤ 40 mg/kg | ≤ 20 mg/kg |
| K | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Fe | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Cu | ≤ 5 mg/kg | ≤ 5 mg/kg |
| Co | ≤ 5 mg/kg | ≤ 5 mg/kg |
| Ca | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Mg | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Al | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Hg | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Heavy Metals (as Pb) | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Cl | — | ≤ 250 mg/kg |
| SiO₂ | — | ≤ 10 mg/kg |
Mechanical Stability:
| Parameter | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Whole Uncracked Beads | ≥ 95% | ≥ 95% |
| Friability (Average) | ≥ 400 g/bead | ≥ 600 g/bead |
| > 200 g/bead | ≥ 95% | ≥ 95% |
| Solubility in Water | ≤ 0.10% | ≤ 0.10% |
Density:
-
Shipping Weight: 700 g/L (for mixed bed AmberLite™ IRN160 H/OH)
3. Operating Conditions
-
Temperature Range: 5 – 100°C (41 – 212°F)
-
pH Range (Stable): 0 – 14
⚠ Operation at elevated temperatures (e.g., >60–70°C) may impact system purity and resin life. Consult DuPont technical representatives for details.
4. Hydraulic Characteristics
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is provided in Figure 1 (refer to original document for detailed curves).
5. Product Stewardship and Safety
-
WARNING: Strong oxidizing agents (e.g., nitric acid) may attack the resin under certain conditions, leading to degradation or violent reactions. Consult professionals before use.
-
Users should review manufacturing processes and applications from health, safety, and environmental perspectives.
-
Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
Users should review manufacturing processes and applications from health, safety, and environmental perspectives. Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
