DuPont IntegraTec™ SFP-2860/2880 Ultrafiltration Membrane Module with Patented PVDF Material and 0.03μm Pore Size for Industrial Water Treatment
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | Dupont |
| Certificação: | CE |
| Número do modelo: | SFP-2860/SFP-2880 |
| Documento: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | negociável |
| Detalhes da embalagem: | Embalagem padrão de exportação |
| Tempo de entrega: | 5-8 dias de trabalho |
| Habilidade da fonte: | 60000 unidades por mês |
|
Informação detalhada |
|||
| Material da membrana: | PVDF de alto desempenho patenteado pela DuPont | Tamanho nominal dos poros: | 00,03 μm |
|---|---|---|---|
| Área da membrana: | 51 m² (SFP-2860), 77 m² (SFP-2880) | Temperatura operacional: | 1 - 40ºC |
| Faixa de pH operacional: | 2 - 12 | Pressão Máxima de Alimentação: | 6.25 bar |
Descrição de produto

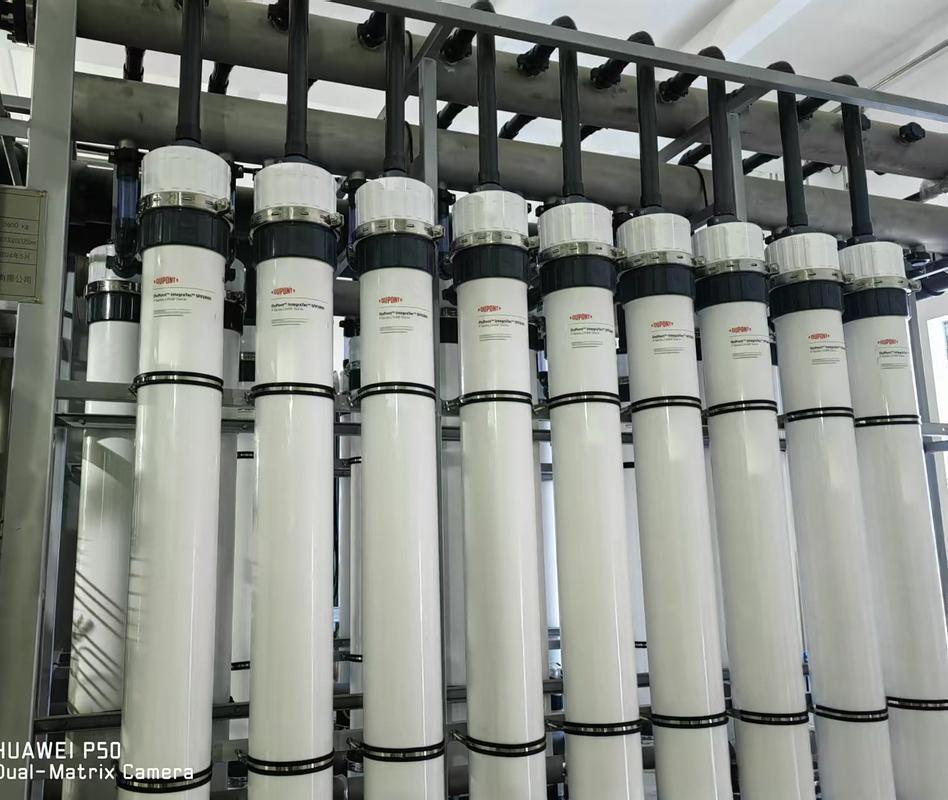

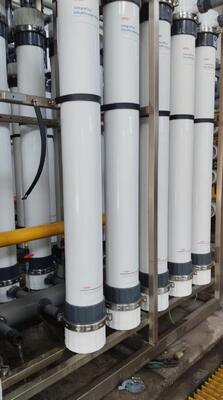

DuPont IntegraTec™ SFP-2860/SFP-2880 Series Ultrafiltration Membrane Modules deliver high-performance filtration for demanding industrial applications.
- DuPont Patented PVDF Material: Manufactured with high-performance PVDF membrane fibers offering exceptional mechanical strength and flexibility for long-term durability
- Superior Hydrophilicity: Excellent membrane fiber hydrophilicity allows easy wetting and cleaning, ensuring stable long-term flux performance
- High-Efficiency Filtration: 0.03μm nominal pore size effectively removes colloids, particulates, bacteria, and viruses for superior effluent water quality

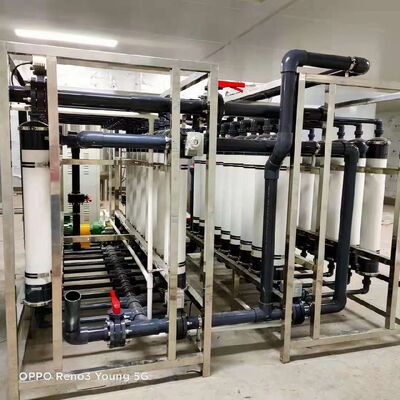

- Open Platform Design: Specifically designed for open platform configurations, compatible with customer-built skid systems for easy installation
- Low Chemical Consumption: Optimized cleaning processes and maintenance protocols significantly reduce chemical usage and operating costs
| Parameter | SFP-2860 (Industrial) | SFP-2880 (Industrial) | SFD-2860 (Drinking Water) | SFD-2880 (Drinking Water) |
|---|---|---|---|---|
| Membrane Area | 51 m² (549 ft²) | 77 m² (829 ft²) | 51 m² (549 ft²) | 77 m² (829 ft²) |
| Hold-Up Volume | 35 L (9.3 gal) | 39 L (10.3 gal) | 35 L (9.3 gal) | 39 L (10.3 gal) |
| Weight (Empty/Wet) | 48kg / 83kg | 61kg / 100kg | 48kg / 83kg | 61kg / 100kg |
| Overall Length | 1,863 mm | 2,363 mm | 1,863 mm | 2,363 mm |
| Diameter | 225 mm | 225 mm | 225 mm | 225 mm |
| Key Certifications | Industrial Use | Industrial Use | NSF/ANSI 61 Compliant | NSF/ANSI 61 & 419 Compliant |
SFP Series: Suitable for general industrial water treatment, wastewater reuse, and RO pretreatment.
SFD Series: Meets strict drinking water safety standards (NSF/ANSI 61), specifically designed for municipal and potable water applications.
| Parameter | SI Units | Imperial Units |
|---|---|---|
| Operating Temperature | 1 - 40°C | 34 - 104°F |
| Operating pH Range | 2 - 12 (during cleaning) | 2 - 12 |
| Operating TMP | 0.4 - 15 bar | 5.8 - 21.8 psi |
| Backwash Pressure | 0.6 - 2.0 bar | 8.7 - 29.0 psi |
| Backwash Flux | 40 - 100 L/(m²*h) | 23.5 - 58.8 gfd |
| Maximum Feed Pressure | 6.25 bar | 90.7 psi |
| Maximum Filtration Flux | 110 L/(m²*h) | 64.5 gfd |
| Maximum Feed Particle Size | ≤ 300 μm | - |
- Municipal & Industrial Drinking Water: Ensures effluent meets potable standards, removing bacteria and viruses
- Wastewater Reuse: Suitable for advanced treatment of municipal and industrial wastewater to enable water recycling
- Industrial Process Water: Provides high-quality process water for power generation, electronics, chemical, and other industries
- RO/NF Pretreatment: Serves as upstream protection for reverse osmosis systems, effectively preventing RO membrane fouling and extending system life
- Pressure Control: Avoid sudden pressure changes during startup, operation, or shutdown. The maximum allowable pressure ramp rate is 0.5 bar/s to prevent membrane fiber damage
- Installation Instructions: Strictly follow the latest DuPont IntegraTec™ Open Platform PVDF-UF Module Assembly Manual (Form No. 45-D02507-en) for assembly
- Long-Term Shutdown: For extended system downtime, it is recommended to fill the modules with a preservative solution to control biological growth
- Drinking Water Compliance: For drinking water applications (SFD series), specific conditioning procedures and local regulatory guidelines must be followed before commissioning
Data Source: DuPont Product Data Sheet 45-D01050-en, Rev. 9 (January 2026)
Important Information: Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence ensures operating parameters conform to design specifications, enabling attainment of system water quality and productivity targets.
Before commencing system start-up procedures, membrane pretreatment, installation of membrane modules, instrument calibration, and other system checks should be accomplished. Refer to the product technical manual.
- Avoid any sudden pressure fluctuations during start-up, shutdown, cleaning or other processes to prevent potential membrane damage
- Flush the UF system to eliminate the shipping solution before start-up
- Remove the residual air from the system before start-up
- Manually initiate the equipment
- Aim for a permeate flow of 60% of the design during initial operations
- Depending on the application, the permeate obtained from initial operations should be disposed of
NOTICE: NSF/ANSI 61 certified drinking water modules demand specific conditioning procedures before generating potable water. Please refer to the flushing section of the product technical manual for detailed procedures. Drinking water modules might be subject to additional regulatory constraints in certain countries. Please verify local regulatory guidelines and the application status before usage and sale.
The utilization of this product does not inevitably ensure the elimination of cysts and pathogens from water. Effective reduction of cysts and pathogens depends on the complete system design as well as the operation and maintenance of the system.
