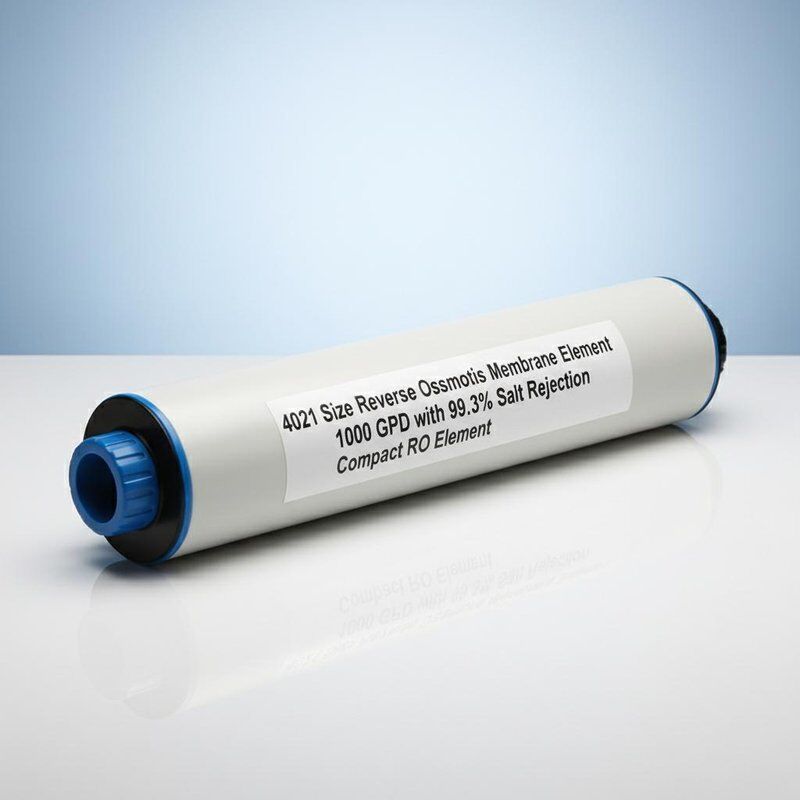

4021 Size Reverse Osmosis Membrane Element 1000 GPD with 99.3% Salt Rejection Compact RO Element
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | FILTERPRO |
| Certificação: | ISO 9001:2015 |
| Número do modelo: | FP-4021-RO |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | USD 35-75 / Piece |
| Detalhes da embalagem: | Embalagem individual selada a vácuo em caixa protetora com solução conservante |
| Tempo de entrega: | 2-3 dias úteis para estoque, 10-15 dias para produção |
| Termos de pagamento: | T/T, L/C, PayPal, Western Union |
| Habilidade da fonte: | 15.000 peças por mês |
|
Informação detalhada |
|||
| Tamanho do elemento de membrana: | 4021 (4 polegadas x 21 polegadas) | Área de membrana ativa: | 36 pés² (3,3 m²) |
|---|---|---|---|
| Taxa de fluxo de penetração: | 1000 GPD (3,8 m³/dia) | Taxa estável de rejeição de sal: | 99,3% |
| Pressão Operacional: | 150 PSI (10,3 bar) | Material da membrana: | Composto de filme fino de poliamida |
| Diâmetro do tubo permeado: | 0.75 polegadas | Espessura do separador de alimentação: | 28 mil |
| Faixa de pH: | 2-11 | ||
| Destacar: | 4021 Compact RO Membrane,1000 GPD Industrial Element,4x21 Inch Reverse Osmosis |
||
Descrição de produto
The FP-4021-RO is a compact 4021 size reverse osmosis membrane element (4-inch diameter x 21-inch length) engineered for applications where space is at a premium without sacrificing filtration performance. Delivering 1000 GPD of purified water with 99.3% salt rejection, this half-length element is the perfect choice for portable, laboratory, and small-scale industrial RO systems.
- Compact 4021 Form Factor: Half the length of a standard 4040 element, the 4021 size fits into tight spaces and lightweight mobile RO units. Ideal for systems where equipment footprint is a critical design constraint.
- 1000 GPD Industry Standard Output: Meets the most common flow requirement for small RO systems including laboratory water purifiers, dental clinic RO units, and portable field water treatment equipment.
- 99.3% Reliable Salt Rejection: Polyamide thin-film composite membrane delivers consistent desalination performance for brackish water with feed TDS up to 2000 ppm.
- Lightweight Design: At approximately 2.5 kg per element, the 4021 form factor enables easy handling, installation, and replacement by a single technician.
- Universal Compatibility: Fits all standard 4021 membrane housings with 0.75-inch permeate tube connection, ensuring broad compatibility with existing systems from multiple manufacturers.
| Parameter | Value |
|---|---|
| Membrane Element Size | 4021 (4" x 21") |
| Active Membrane Area | 36 ft² (3.3 m²) |
| Permeate Flow Rate | 1,000 GPD (3.8 m³/day) |
| Stable Salt Rejection | 99.3% |
| Operating Pressure | 150 PSI (10.3 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Polyamide TFC |
| Permeate Tube Diameter | 0.75" (19 mm) |
| Feed Spacer Thickness | 28 mil |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Element Weight (Wet) | Approx. 2.5 kg |
Designed for laboratory water purification systems (Type II/III water), dental and medical clinic RO units, portable field water treatment equipment for military and disaster relief, small commercial ice makers and coffee machines, and vehicle-mounted or shipboard water purification systems. Also suitable for pilot-scale industrial RO testing and process development.
