500 M³/day Containerized BWRO System with 70% Recovery Rate and 1.04 kWh/m³ Energy Consumption
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | FG Water Technologies |
| Certificação: | CE |
| Número do modelo: | BWC500 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Detalhes da embalagem: | Padrão |
| Tempo de entrega: | 30 dias úteis |
| Termos de pagamento: | T/T |
|
Informação detalhada |
|||
| Taxa de recuperação nominal: | 70% | Fluxo de produto avaliado: | 22 m³/h |
|---|---|---|---|
| Quantidade de membrana RO: | 25 peças | Tamanho do contêiner: | 40 pés |
| Potência nominal: | 15,6 kW | Consumo de energia: | 1,04 kWh/m³ |
Descrição de produto

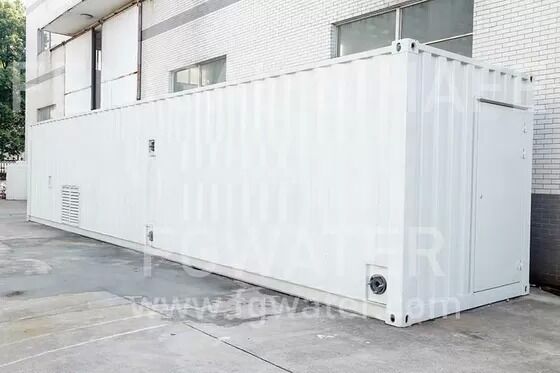

500 M³/day Desal BWC500 – High‑Efficiency Containerized BWRO

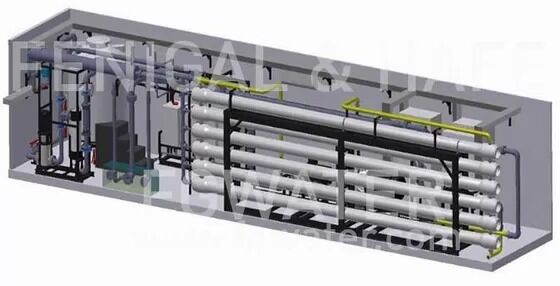

The BWC500 is where capacity meets efficiency. Producing 22 m³/h (500 m³/day) from a single 40‑ft container, it achieves an outstanding energy consumption of just 1.04 kWh/m³ - one of the lowest in its class. With 25 RO membranes, a high‑pressure pump designed for continuous duty, and advanced corrosion‑resistant materials (duplex steel, UPVC), this system is built for municipalities, power plants, and large farms. Its full automation with HMI touchscreen allows remote monitoring, making it a smart choice for critical water infrastructure.
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Rated Product Flow | m³/h | 22 |
| Rated Product Flow | L/s | 6.11 |
| Rated Recovery Rate | % | 70 |
| Rated Feed Flow | m³/h | 31.43 |
| Max System Pressure | barg | 20 |
| RO Membrane Spec | inch | 8,040 |
| RO Membrane Qty | pcs | 25 |
| Dry Weight | ton | 12 |
| Container Size | ft | 40 |
| Rated Power | kW | 44.4 |
| Energy Consumption | kWh/m³ | 1.04 |
| Installed Power | kW | 70.2 |
| Power Input | - | 3PH, 380V ±10%, 50Hz |
System Features
- Industry‑leading efficiency - among the lowest kWh/m³ for this capacity
- Heavy‑duty materials - wetted parts resist scaling and corrosion even in aggressive water
- Fully automated - PLC with touchscreen for real‑time diagnostics and remote access
- Expandable - can be paralleled with another unit to double output without redesign
Applications
Small‑to‑medium municipal supply, power plant cooling, large irrigation districts, mining operations
